CFS flats

The Future of Biometrics Is Here



Introducing CFS flats—the world’s first FBI-certified 3D contactless fingerprint scanner.

Exploded View of CFS flats

CFS flats represents the pinnacle of fingerprint scanning technology – a high-quality 3D contactless fingerprint scanner that’s changing how we think about biometric identification.

Powered by Bluelynes Technology®

CFS flats uses structured blue light for 3D reconstruction. A known pattern is projected on and deformed by the surface structure of the finger. By imaging the deformed pattern with a camera, the 3D surface shape can be reconstructed via triangulation. An unwrapping algorithm transforms the 3D fingerprint scan to a 2D image, thereby providing important compatibility with today’s infrastructure of contact-based 2D fingerprint databases. Therefore, not only can CFS flats be used for verification, but also for enrolment in these 2D fingerprint databases.

The 3D contactless fingerprint scanner CFS flats does not just take a picture of the fingerprint, but instead takes a full 3D image of the fingerprint, creating a 3D point cloud of the surface of the fingers. CFS flats takes up to eight million data points per scan, 13 point-clouds per second, achieves a micron-scale depth resolution, and outputs data in the government standard fingerprint quality (e.g. 500ppi resolution).

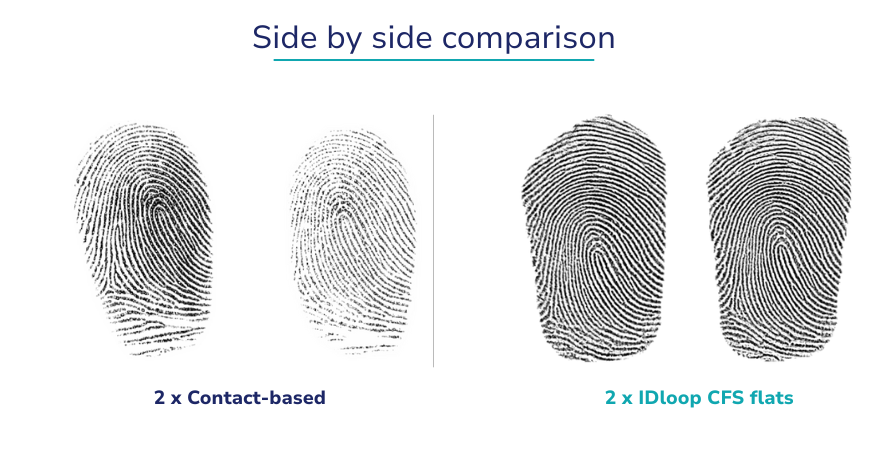

CFS flats scanner successfully captures fingerprints in all conditions and functions optimally independent of ambient lighting, motion, skin color variation, and skin moisture levels. The CFS flats scanner simultaneously captures four flat fingerprints significantly faster than contact-based devices (where good contact with the scanning surface is required).

can be used for database enrolment

Resolution down to the micron scale

3D Image capture significantly faster

More than 5 million 3D points

Faster than with contact-based devices

SPEED



The speed and precision of capture makes CFS flats scanners the ideal solution for a wide range of applications, including airport and border control, access control systems and other public venues where the highest level of security is demanded.

WHY GO CONTACTLESS

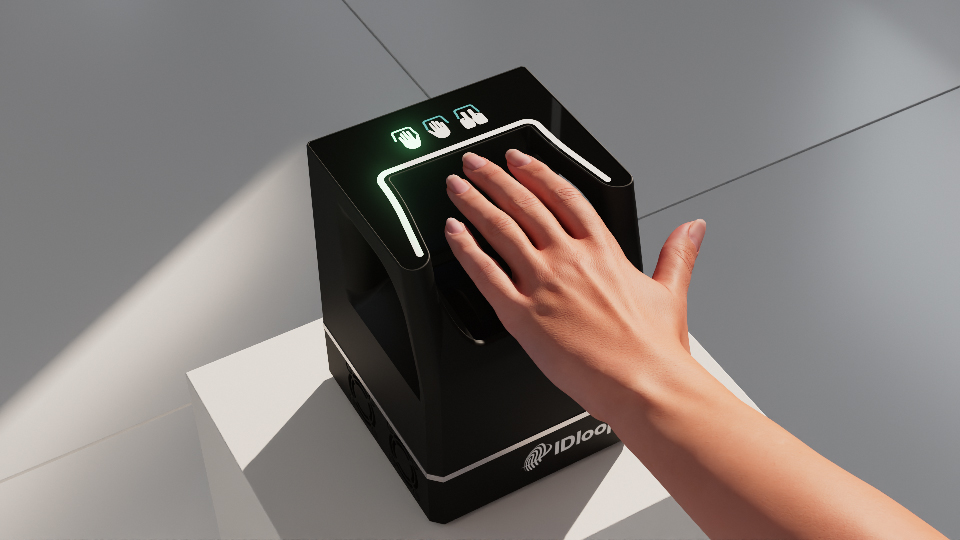

Unlike traditional scanners that require physical contact, CFS flats captures perfect fingerprint scans without users ever touching a surface.

This contactless aspect protects the user from any bacteria, viruses and/or chemicals that might have been left on the surface of the device by previous users. In addition, no latent prints are left on the scanner from previous users, which can pose security problems due to false matching.

The contactless workflow also assists the operator from needing to clean the surface between uses, decreasing the cost of operating materials, and speeding up the time of acquisition. Normal wear-and-tear and device damage also is drastically reduced simply because the device does not need to be touched. Common contact-based scanner challenges, such as scratched surfaces, become obsolete.



CFS flats provides full contactless capturing of the fingers via bluelynes (IDloop's in-house 3D imaging technology)

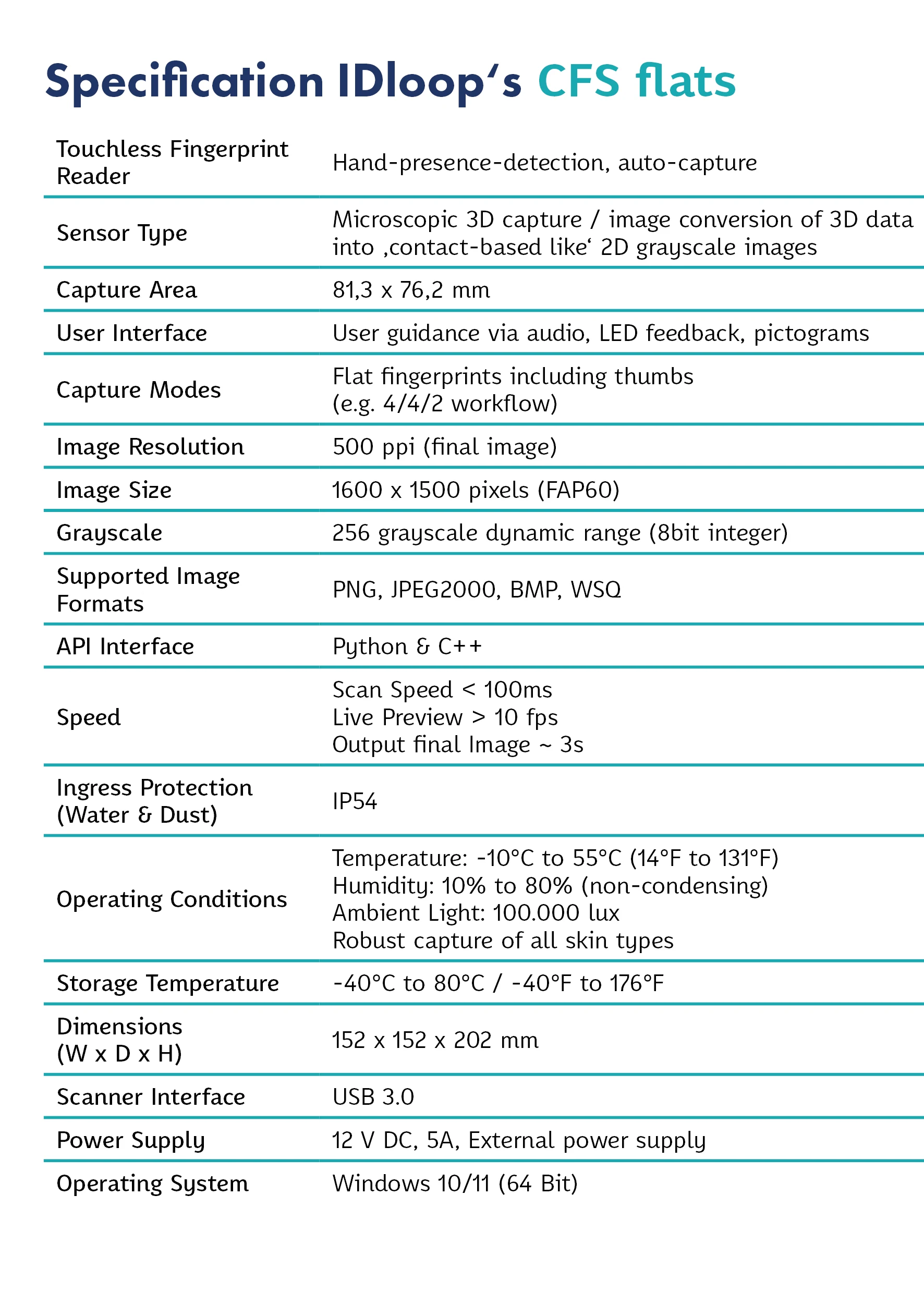

CFS flats Specifications

Touchless Fingerprint Reader
Sensor Type
Capture Area
User Interface
Capture Modes
Image Resolution
Image Size
Grayscale
Supported Image Formats
API interface
Speed
Ingress protection (Water & Dust)
Operating conditions
Storage Temperature
Dimensions (W x D x H)
Scanner interface
Power supply
Operating system
Hand-presence-detection, auto-capture
Microscopic 3D capture / image conversion of 3D data into ‘contact-based like’ 2D grayscale images
81.3 x 76.2 mm
User guidance via audio, LED feedback, pictograms
Flat fingerprints including thumbs (e.g. 4/4/2 workflow)
500 ppi (final image)
1,600 x 1,500 pixels (FAP60)
256 grayscale dynamic range (8bit integer)
PNG, JPEG2000, BMP, WSQ
Python & C++
Scan speed < 100 ms / Live preview > 10 frames per second / Output final image ~ 3s
IP54
Temperature: -10°C to 55°C (14°F to 131 °F) / Humidity: 10% - 80% (non-condensing) / Ambient light: 100,000 lux / Robust capture of all skin types (dry, wet, dark, bright, wrinkled, small features)
-40°C to 80°C/-40°F to 176°F
152 x 152 x 202 mm
USB 3.0
12 V DC, 5A, External power supply
Windows 10/11 (64 Bit)
